Learning Redis Basic Data Structure and Mapping With Java Data Structure
In this article, we will demonstrate the usage of java data structure with its corresponding Redis data type in terms of java code as a Jedis client.
By
·
·
Tutorial
·
Likes
(2)
Likes
There are no likes...yet! 👀
Be the first to like this post!
It looks like you're not logged in.
Sign in to see who liked this post!
Comment
Save
7.3K Views
Join the DZone community and get the full member experience.
Join For FreeWe all know that Redis is an in-memory database server which has its own data structure.
String(float and integer) |
512MB; Stores string, numerical value, serialized JSON, and binary |
list |
Stores list of Strings and holds 4 billion entries. It is used to design Queue and Stack. It is implemented as a doubly LinkedList. |
set |
Allows the unique collection of elements. Supports set operations like difference, intersect, and union. |
hash |
Collection of field-value pairs and mutable. |
The below table is the corresponding java data structure.
String |
String stores sequence of characters. |
List<String> |
Stores list of Strings and holds 4 billion entries. It is used to design Queue and Stack. It is implemented as a doubly LinkedList. |
Set<String> |
Allows the unique collection of elements. Supports set operations like difference, intersect, and union. |
Map<String, String> |
Collection of field-value pairs and mutable. |
Double |
Primitive data type |
Long |
Primitive data type |
Prerequisites
- Eclipse (any version) with Maven capabilities
- Java 8+
- Junit
- Redis and Jedis
Installing Redis Server on Windows
- Click on the link: https://github.com/dmajkic/redis/downloads
- Download redis-2.4.5-win32-win64.zip file
- Unzip the file and go to 64bit folder. There you can find redis-server.exe
- To start the Redis server, execute the redis-server.exe file.
Installing Eclipse-IDE on Windows
- Click on the link: https://www.eclipse.org/downloads/download.php?file=/oomph/epp/2020-09/R/eclipse-inst-jre-win64.exe
- Download eclipse-inst-jre-win64.exe file and run the eclipse installer.

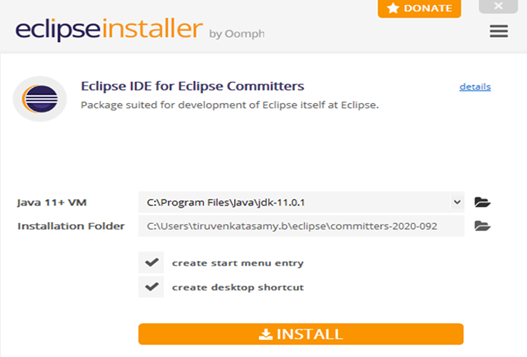

3.Select Eclipse IDE for Eclipse committers and install
Creating a Maven Project in Eclipse IDE
- Open the Eclipse IDE
2.Go to File > New > Project
3.Go to Maven -> Maven Project and click Next.
4.Select your workspace location and click Next
5.Select quick start maven archetype and click Next.
6.Enter Group Id, Artifact Id, and package name.
- Group Id: Fill a groupId for the project of your choice.
- Artifact Id: Fill artifactId for the project of your choice.
- Package: java package structure of your choice
7.The above process will create a project structure like below.
8. Place the HostPort.java file in com.example.demo package.
Java
x
20
1
package com.example.demo;
2
3
public class HostPort {
4
final private static String defaultHost = "localhost";
5
final private static Integer defaultPort = 6379;
6
final private static String defaultPassword = "";
7
8
public static String getRedisHost() {
9
return defaultHost;
10
}
11
12
public static Integer getRedisPort() {
13
return defaultPort;
14
}
15
16
public static String getRedisPassword() {
17
return defaultPassword;
18
}
19
}
20
9. Add the JedisBasicsTest.java file in com.example.demo package.
Java
xxxxxxxxxx
1
143
1
package com.example.demo;
2
import static org.hamcrest.MatcherAssert.assertThat;
3
import static org.hamcrest.Matchers.is;
4
5
import java.util.Arrays;
6
import java.util.HashMap;
7
import java.util.HashSet;
8
import java.util.List;
9
import java.util.Map;
10
import java.util.Set;
11
12
import org.junit.After;
13
import org.junit.Before;
14
import org.junit.Test;
15
16
import redis.clients.jedis.Jedis;
17
18
public class JedisBasicsTest {
19
20
public static String[] testPlanets = { "Mercury", "Mercury", "Venus", "Earth", "Earth", "Mars", "Jupiter", "Saturn",
21
"Uranus", "Neptune", "Pluto" };
22
23
private Jedis;
24
25
26
public void setUp() {
27
this.jedis = new Jedis(HostPort.getRedisHost(), HostPort.getRedisPort());
28
29
if (HostPort.getRedisPassword().length() > 0) {
30
jedis.auth(HostPort.getRedisPassword());
31
}
32
33
jedis.del("planets");
34
jedis.del("earth");
35
}
36
37
38
public void tearDown() {
39
jedis.del("planets");
40
jedis.del("earth");
41
jedis.close();
42
}
43
44
45
public void testRedisList() {
46
assertThat(testPlanets.length, is(11));
47
48
/* Add all test planets to the Redis set */
49
50
for (String testPlanet : testPlanets) {
51
Long result=jedis.rpush("planets", testPlanet);
52
//System.out.println(result);
53
}
54
55
// Check the length of the list
56
Long length = jedis.llen("planets");
57
System.out.println(length);
58
assertThat(length, is(11L));
59
60
// Get the planets from the list
61
// Note: LRANGE is an O(n) command. Be careful running this command
62
// with high-cardinality sets.
63
List<String> planets = jedis.lrange("planets", 0, -1);
64
System.out.println(planets);
65
assertThat(planets, is(Arrays.asList(testPlanets)));
66
67
// Remove the elements that we know are duplicates
68
jedis.lrem("planets", 1, "Mercury");
69
jedis.lrem("planets", 1, "Earth");
70
71
// Drop a planet from the end of the list
72
String planet = jedis.rpop("planets");
73
assertThat(planet, is("Pluto"));
74
length = jedis.llen("planets");
75
System.out.println(length);
76
assertThat(length, is(8L));
77
}
78
79
80
public void testRedisSet() {
81
assertThat(testPlanets.length, is(11));
82
83
// Add all test planets to the Redis set
84
jedis.sadd("planets", testPlanets);
85
86
// Return the cardinality of the set
87
Long length = jedis.scard("planets");
88
System.out.println("length :: "+length);
89
assertThat(length, is(9L));
90
91
// Fetch all values from the set
92
// Note: SMEMBERS is an O(n) command. Be careful running this command
93
// with high-cardinality sets. Consider SSCAN as an alternative.
94
Set<String> planets = jedis.smembers("planets");
95
System.out.println("planets :: "+planets);
96
97
// Ensure that a HashSet created and stored in Java memory and the set stored
98
// in Redis have the same values.
99
Set<String> planetSet = new HashSet<>(Arrays.asList(testPlanets));
100
assertThat(planets, is(planetSet));
101
102
// Pluto is, of course, no longer a first-class planet. Remove it.
103
Long response = jedis.srem("planets", "Pluto");
104
assertThat(response, is(1L));
105
106
// Now we have 8 planets, as expected.
107
Long newLength = jedis.scard("planets");
108
System.out.println("newLength :: "+newLength);
109
assertThat(newLength, is(8L));
110
}
111
112
113
public void testRedisHash() {
114
Map<String, String> earthProperties = new HashMap<>();
115
earthProperties.put("diameterKM", "12756");
116
earthProperties.put("dayLengthHrs", "24");
117
earthProperties.put("meanTempC", "15");
118
earthProperties.put("moonCount", "1");
119
120
// Set the fields of the hash one by one.
121
for (Map.Entry<String, String> property : earthProperties.entrySet()) {
122
jedis.hset("earth", property.getKey(), property.getValue());
123
}
124
125
// Get the hash we just created back from Redis.
126
Map<String, String> storedProperties = jedis.hgetAll("earth");
127
System.out.println("storedProperties :: "+storedProperties);
128
assertThat(storedProperties, is(earthProperties));
129
130
// Setting fields all at once is more efficient.
131
jedis.hmset("earth", earthProperties);
132
storedProperties = jedis.hgetAll("earth");
133
System.out.println("storedProperties :: "+storedProperties);
134
assertThat(storedProperties, is(earthProperties));
135
136
// Test that we can get a single property.
137
String diameter = jedis.hget("earth", "diameterKM");
138
System.out.println("diameter :: "+diameter);
139
assertThat(diameter, is(earthProperties.get("diameterKM")));
140
}
141
142
}
143
10.Replace the pom.xml with the below content.
XML
xxxxxxxxxx
1
212
1
2
<project
3
xmlns="http://maven.apache.org/POM/4.0.0"
4
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
5
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
6
7
<modelVersion>4.0.0</modelVersion>
8
<prerequisites>
9
<maven>3.0.0</maven>
10
</prerequisites>
11
12
<groupId>RedisDataStructDemo</groupId>
13
<artifactId>RedisDataStructDemo</artifactId>
14
<version>1.0</version>
15
<packaging>jar</packaging>
16
17
<name>RedisDataStructDemo</name>
18
19
<properties>
20
<redis.host>localhost</redis.host>
21
<redis.port>6379</redis.port>
22
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
23
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
24
<dropwizard.version>1.3.8</dropwizard.version>
25
<mainClass>com.example.demo.RediSolarApplication</mainClass>
26
</properties>
27
28
<dependencyManagement>
29
<dependencies>
30
<dependency>
31
<groupId>io.dropwizard</groupId>
32
<artifactId>dropwizard-bom</artifactId>
33
<version>${dropwizard.version}</version>
34
<type>pom</type>
35
<scope>import</scope>
36
</dependency>
37
</dependencies>
38
</dependencyManagement>
39
40
<dependencies>
41
<dependency>
42
<groupId>com.google.inject</groupId>
43
<artifactId>guice</artifactId>
44
<version>4.2.2</version>
45
</dependency>
46
<dependency>
47
<groupId>io.dropwizard</groupId>
48
<artifactId>dropwizard-core</artifactId>
49
</dependency>
50
<dependency>
51
<groupId>io.dropwizard</groupId>
52
<artifactId>dropwizard-assets</artifactId>
53
</dependency>
54
<dependency>
55
<groupId>io.dropwizard</groupId>
56
<artifactId>dropwizard-testing</artifactId>
57
</dependency>
58
<dependency>
59
<groupId>redis.clients</groupId>
60
<artifactId>jedis</artifactId>
61
<version>3.1.0-m3</version>
62
</dependency>
63
<dependency>
64
<groupId>com.redislabs</groupId>
65
<artifactId>jredistimeseries</artifactId>
66
<version>0.9.0</version>
67
</dependency>
68
<dependency>
69
<groupId>javax.xml.bind</groupId>
70
<artifactId>jaxb-api</artifactId>
71
<version>2.2.11</version>
72
</dependency>
73
<dependency>
74
<groupId>com.sun.xml.bind</groupId>
75
<artifactId>jaxb-core</artifactId>
76
<version>2.2.11</version>
77
</dependency>
78
<dependency>
79
<groupId>com.sun.xml.bind</groupId>
80
<artifactId>jaxb-impl</artifactId>
81
<version>2.2.11</version>
82
</dependency>
83
<dependency>
84
<groupId>javax.activation</groupId>
85
<artifactId>activation</artifactId>
86
<version>1.1.1</version>
87
</dependency>
88
<dependency>
89
<groupId>junit</groupId>
90
<artifactId>junit</artifactId>
91
<version>4.12</version>
92
<scope>test</scope>
93
</dependency>
94
<dependency>
95
<groupId>org.hamcrest</groupId>
96
<artifactId>hamcrest-all</artifactId>
97
<version>1.3</version>
98
<scope>test</scope>
99
</dependency>
100
<dependency>
101
<groupId>org.mockito</groupId>
102
<artifactId>mockito-all</artifactId>
103
<version>1.9.5</version>
104
<scope>test</scope>
105
</dependency>
106
</dependencies>
107
108
<build>
109
<plugins>
110
<plugin>
111
<groupId>org.codehaus.mojo</groupId>
112
<artifactId>properties-maven-plugin</artifactId>
113
<version>1.0.0</version>
114
<executions>
115
<execution>
116
<phase>initialize</phase>
117
<goals>
118
<goal>read-project-properties</goal>
119
</goals>
120
<configuration>
121
<files>
122
<file>pom.xml</file>
123
</files>
124
</configuration>
125
</execution>
126
</executions>
127
</plugin>
128
<plugin>
129
<artifactId>maven-shade-plugin</artifactId>
130
<version>2.4.1</version>
131
<configuration>
132
<createDependencyReducedPom>false</createDependencyReducedPom>
133
<transformers>
134
<transformer implementation="org.apache.maven.plugins.shade.resource.ServicesResourceTransformer"/>
135
<transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
136
<mainClass>${mainClass}</mainClass>
137
</transformer>
138
</transformers>
139
<!-- exclude signed Manifests -->
140
<filters>
141
<filter>
142
<artifact>*:*</artifact>
143
<excludes>
144
<exclude>META-INF/*.SF</exclude>
145
<exclude>META-INF/*.DSA</exclude>
146
<exclude>META-INF/*.RSA</exclude>
147
</excludes>
148
</filter>
149
</filters>
150
</configuration>
151
<executions>
152
<execution>
153
<phase>package</phase>
154
<goals>
155
<goal>shade</goal>
156
</goals>
157
</execution>
158
</executions>
159
</plugin>
160
<plugin>
161
<artifactId>maven-jar-plugin</artifactId>
162
<version>3.0.2</version>
163
<configuration>
164
<archive>
165
<manifest>
166
<addClasspath>true</addClasspath>
167
<mainClass>${mainClass}</mainClass>
168
</manifest>
169
</archive>
170
</configuration>
171
</plugin>
172
<plugin>
173
<artifactId>maven-compiler-plugin</artifactId>
174
<version>3.6.1</version>
175
<configuration>
176
<source>1.8</source>
177
<target>1.8</target>
178
</configuration>
179
</plugin>
180
<plugin>
181
<artifactId>maven-source-plugin</artifactId>
182
<version>3.0.1</version>
183
<executions>
184
<execution>
185
<id>attach-sources</id>
186
<goals>
187
<goal>jar</goal>
188
</goals>
189
</execution>
190
</executions>
191
</plugin>
192
</plugins>
193
</build>
194
195
<reporting>
196
<plugins>
197
<plugin>
198
<artifactId>maven-project-info-reports-plugin</artifactId>
199
<version>2.8.1</version>
200
<configuration>
201
<dependencyLocationsEnabled>false</dependencyLocationsEnabled>
202
<dependencyDetailsEnabled>false</dependencyDetailsEnabled>
203
</configuration>
204
</plugin>
205
<plugin>
206
<artifactId>maven-javadoc-plugin</artifactId>
207
<version>2.10.3</version>
208
</plugin>
209
</plugins>
210
</reporting>
211
</project>
212
Running the Code
1.Build the Maven project and run the test case as shown below
2.Check the test result.
Now, we learned Redis' basic data structure and working with the Jedis java API.
Further, this use case can be adapted according to your requirements.
Feel free to ask any questions.
Data structure
Data (computing)
Java (programming language)
Redis (company)
Data Types
Opinions expressed by DZone contributors are their own.
Comments
