How To Run JUnit Tests From The Command Line
Want to run JUnit tests from the command line? Read on to learn how to compile and run JUnit tests from the command line in different ways.
Join the DZone community and get the full member experience.
Join For FreeJUnit is one of the most popular Java-based open-source frameworks used for testing every unit of the application, i.e., classes and methods. And for automating the testing of web applications, you can use it with the Selenium WebDriver. Though Selenium and JUnit can function independently, combining them can help develop tests in a structured format.
Though Java offers several IDEs using which you can write code and run tests, you would like to execute JUnit from the command line. Why?
Because it can be useful for quickly checking whether the tests are running as per expectations (avoiding the need to open the IDE). In this tutorial, we look at how to run the JUnit test from the command line. We will cover the following combinations to run JUnit tests from the command line:
Plain JUnit without any build-automation (or build system) tools like Apache Maven, Gradle, etc.
JUnit with Apache Maven
JUnit with Gradle
JUnit with ANT
It would help if you executed JUnit from the command line, especially when you want to check whether your tests are working fine or not quickly. Along with JUnit’s usage from the command line with build systems like Apache Maven and Gradle, you can use it with popular CI/CD tools like Jenkins, Bamboo, Travis CI, and more.
The tests demonstrated in the article would be executed on the cloud-based Selenium Grid powered by LambdaTest. And, by the end of this blog, you would be in a position to execute JUnit + Selenium tests outside the IDE on the command line.
For a quick recap on JUnit and Selenium WebDriver, you can refer to our blog on automated testing with JUnit and Selenium for browser compatibility.
Note – The demonstration uses JUnit 4, but if you want to run JUnit tests from the command line for JUnit 5, please chime in the comment section, and we’ll cover it for you in our subsequent blogs.
JUnitCore – Facade For Running JUnit Tests
You can run JUnit tests from the command line using the JUnit core class of the JUnit framework. The org.junit.runner.JUnitCore
is an in-built class in JUnit, and it is based on the facade design pattern. The JUnitCore class provides a static method runClasses
that lets you run one or several test classes. It supports running tests that use JUnit 4, JUnit 3.8.x, and its mixtures.
public static Result runClasses(java.lang.Class<?>... classes)
The runClasses
method writes the feedback for all the tests and stack traces for the failed tests to complete test execution. In return, you receive an object of the type org.junit.runner.Result
, which can be further used for fetching the details about the tests.
Setting Up The Build Environment To Run JUnit Tests From The Command Line
You need to download the requisite jar files necessary for compiling and running the JUnit and Selenium tests. Even though the tests will run on the cloud-based Selenium Grid, we still need to download the Selenium Server jar. It is required so that the classes offer methods in org.openqa.selenium package can be used in the implementation.
Since the requests will be executed on the cloud-based Selenium Grid, there is no necessity to start the Selenium Grid server on the machine. Along with the Selenium Grid Server jar, download the below jar files in the same directory:
JAR FILE | DOWNLOAD LINK |
---|---|
JUnit (v 4.13.1) | https://repo1.maven.org/maven2/junit/junit/4.13.1/junit-4.13.1.jar |
Selenium Server (v 4.0.0-alpha-6) | https://selenium-release.storage.googleapis.com/4.0-alpha-6/selenium-server-4.0.0-alpha-6.jar |
Selenium Java (v 4.0.0-alpha-6) | https://repo1.maven.org/maven2/org/seleniumhq/selenium/selenium-java/4.0.0-alpha-6/selenium-java-4.0.0-alpha-6.jar |
HamCrest (v2.2) | https://repo1.maven.org/maven2/org/hamcrest/hamcrest/2.2/hamcrest-2.2.jar |
The latest version of the Hamcrest framework consists of a single jar file containing the base classes and library used for matcher implementations. Apart from Hamcrest-2.2.jar, it is not necessary to download other Hamcrest jars like Hamcrest-core.jar. Add the location where the four jar files are downloaded to the Classpath (or Path).
Now that the build setup is complete, you can compile JUnit tests and execute the tests on the terminal.
How To Compile JUnit Tests From The Command Line In Selenium
The command for compiling the JUnit test remains unchanged, irrespective of whether the JUnit test is a plain JUnit or uses a build-automation tool like Gradle, Maven, etc.
Run the following command on the terminal to compile the JUnit test:
xxxxxxxxxx
javac -cp "<Path to JUnit jar + Selenium Server jar + Selenium Java jar>;." FileName.java
For example, if the jar files are located in the C:\Jars folder, the following command is used for compiling the JUnit test from the command line:
xxxxxxxxxx
javac -cp "C:\Jars\junit-4.13.1.jar;C:\Jars\selenium-java-4.0.0-alpha-6.jar;C:\Jars\selenium-server-4.0.0-alpha-6.jar;." FileName.java
How To Run JUnit Tests From The Command Line In Selenium
The command to run the JUnit test from the command line will vary depending on the build automation tool used in the project.
Here is the command to execute JUnit from the command line:
xxxxxxxxxx
java -cp "<Path to JUnit jar + Selenium Server jar + Selenium Java jar + hamcrest jar>;." org.junit.runner.JUnitCore FileName
In the command, the path to the jar files (i.e., JUnit, Hamcrest, Selenium Java, and Selenium Server) is specified along with org.junit.runner.JUnitCore
class that triggers the JUnit test class to run.
For example, if the jar files are located in the C:\Jars folder, the following command is used to run the JUnit test from the command line:
xxxxxxxxxx
java -cp "C:\Jars\junit-4.13.1.jar;C:\Jars\selenium-java-4.0.0-alpha-6.jar;C:\Jars\selenium-server-4.0.0-alpha-6.jar;C:\Jars\hamcrest-2.2.jar;." org.junit.runner.JUnitCore FileName
Different Ways To Run JUnit Tests From The Command Line
This section demonstrates how to run JUnit tests from the command line in conjunction with different build automation tools like Maven, Gradle, and Apache ANT.
Test Scenario
Navigate to the URL https://lambdatest.github.io/sample-todo-app/ in the latest version of Chrome on Windows 10.
Click on the web elements with li1 and li2.
Add a new element to the list titled Happy Testing at LambdaTest.
Assert if the new element is not added to the list.
Implementation
FileName – CrossBrowserTest.java
xxxxxxxxxx
import org.openqa.selenium.By;
import org.openqa.selenium.JavascriptExecutor;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.remote.DesiredCapabilities;
import org.openqa.selenium.remote.RemoteWebDriver;
import java.net.MalformedURLException;
import java.net.URL;
/* JUnit related imports */
import org.junit.*;
public class CrossBrowserTest {
/* protected static ChromeDriver driver; */
static WebDriver driver = null;
static String URL = "https://lambdatest.github.io/sample-todo-app/";
public static String status = "passed";
static String username = "user-name";
static String access_key = "access-key";
public static void SetUpClass() throws MalformedURLException {
/*
WebDriverManager.chromedriver().setup();
driver = new ChromeDriver();
*/
DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("build", "[Java] Demonstration of running JUnit tests from the command line");
capabilities.setCapability("name", "[Java] Demonstration of running JUnit tests from the command line");
capabilities.setCapability("platform", "Windows 10");
capabilities.setCapability("browserName", "Chrome");
capabilities.setCapability("version","latest");
capabilities.setCapability("tunnel",false);
capabilities.setCapability("network",true);
capabilities.setCapability("console",true);
capabilities.setCapability("visual",true);
driver = new RemoteWebDriver(new URL("https://" + username + ":" + access_key + "@hub.lambdatest.com/wd/hub"), capabilities);
/* driver = new ChromeDriver(); */
System.out.println("Started session");
}
public void test_Selenium4_ToDoApp() throws InterruptedException {
driver.navigate().to(URL);
driver.manage().window().maximize();
try {
/* Let's mark the first two items in the list. */
driver.findElement(By.name("li1")).click();
driver.findElement(By.name("li2")).click();
/* Let's add an item to the list. */
driver.findElement(By.id("sampletodotext")).sendKeys("Happy Testing at LambdaTest");
driver.findElement(By.id("addbutton")).click();
/* Let's check that the item we added is added in the list. */
String enteredText = driver.findElement(By.xpath("/html/body/div/div/div/ul/li[6]/span")).getText();
if (enteredText.equals("Happy Testing at LambdaTest")) {
System.out.println("Demonstration of running JUnit tests from the command line is complete");
}
} catch (Exception e) {
System.out.println(e.getMessage());
}
}
public static void TearDownClass() {
if (driver != null) {
((JavascriptExecutor) driver).executeScript("lambda-status=" + status);
driver.quit();
}
}
}
Code WalkThrough
Step 1: You need to import the JUnit class before annotations in the JUnit test code.
xxxxxxxxxx
import org.junit.AfterClass;
import org.junit.BeforeClass;
import org.junit.*;
Step 2: The desired capabilities are generated using the LambdaTest capabilities generator. Since only one JUnit test has to be executed, we perform the necessary initializations in the @BeforeClass
method.
xxxxxxxxxx
public static void SetUpClass() throws MalformedURLException {
/*
WebDriverManager.chromedriver().setup();
driver = new ChromeDriver();
*/
DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("build", "[Java] Demonstration of running JUnit tests from the command line");
capabilities.setCapability("name", "[Java] Demonstration of running JUnit tests from the command line");
capabilities.setCapability("platform", "Windows 10");
capabilities.setCapability("browserName", "Chrome");
capabilities.setCapability("version","latest");
capabilities.setCapability("tunnel",false);
capabilities.setCapability("network",true);
capabilities.setCapability("console",true);
capabilities.setCapability("visual",true);
...................................................
...................................................
driver = new RemoteWebDriver(new URL("https://" + username + ":" + access_key + "@hub.lambdatest.com/wd/hub"), capabilities);
/* driver = new ChromeDriver(); */
System.out.println("Started session");
}
Step 3: The details about the cloud-based Selenium Grid on LambdaTest along with the browser & OS combination on which the test has to be performed are passed via the capabilities
object.
xxxxxxxxxx
driver = new RemoteWebDriver(new URL("https://" + username + ":" + access_key + "@hub.lambdatest.com/wd/hub"), capabilities);
Step 4: The annotation @Test
includes the test method i.e. test_Selenium4_ToDoApp
. In the test method, web elements li1 and li2 are located using the name
property.
xxxxxxxxxx
public void test_Selenium4_ToDoApp() throws InterruptedException {
driver.navigate().to(URL);
driver.manage().window().maximize();
try {
/* Let's mark the first two items in the list. */
driver.findElement(By.name("li1")).click();
driver.findElement(By.name("li2")).click();
...................................................
...................................................
Step 5: A new item is added to the list by locating the element with ID sampletodotext
. The sendKeys
method in Selenium is used for adding the text to the text box sampletodotext.
A click operation is performed on the button with the ID addbutton
to add the new item to the list.
xxxxxxxxxx
/* Let's add an item to the list. */
driver.findElement(By.id("sampletodotext")).sendKeys("Happy Testing at LambdaTest");
driver.findElement(By.id("addbutton")).click();
The getText
method in Java Selenium is used for getting the inner text of the newly added element (i.e., Happy Testing at LambdaTest).
xxxxxxxxxx
String enteredText = driver.findElement(By.xpath("/html/body/div/div/div/ul/li[6]/span")).getText();
Now that the implementation is complete, we look at the different ways in which the JUnit test method can be run from the command line. Before we proceed with the code compilation and execution, ensure that you have downloaded all the required jar files on your machine.
How To Run Plain JUnit Tests From The Command Line
The plain in the title means that we only have the test file (i.e., CrossBrowserTest.java) in the folder, and no build automation tool is used for managing the project.
Compilation of JUnit tests from the command line
The command format for the compilation of the JUnit Test is:
xxxxxxxxxx
javac -cp "<Path to JUnit, Selenium, and other Jars>;." FileName.java
To compile the test file, first navigate to the location that contains the Java file and run the following command on the terminal:
xxxxxxxxxx
javac -cp "C:\Jars\junit-4.13.1.jar;C:\Jars\selenium-java-4.0.0-alpha-6.jar;C:\Jars\selenium-server-4.0.0-alpha-6.jar;." CrossBrowserTest.java
Where C:\Jars contains the required Jar files for compilation.
Execution of JUnit tests from the command line
Now that the class file is generated, we run the JUnit test from the command line by triggering the following command on the terminal:
xxxxxxxxxx
java -cp "<Path to JUnit, Selenium, and other Jars>;." org.junit.runner.JUnitCore FileName
For execution, we also require to add the Hamcrest jar to the build command. The org.junit.runner.JUnitCore
class triggers the JUnit test class to run.
Since the jar files in our system are located in C:\Jars, the JUnit test is run using the following command:
xxxxxxxxxx
java -cp "C:\Jars\junit-4.13.1.jar;C:\Jars\selenium-java-4.0.0-alpha-6.jar;C:\Jars\selenium-server-4.0.0-alpha-6.jar;C:\Jars\hamcrest-2.2.jar;." org.junit.runner.JUnitCore CrossBrowserTest
Here is the execution snapshot, which indicates the test was executed successfully on the Selenium Grid cloud.
How To Run JUnit Tests From The Command Line With Apache Maven
If you are using Maven for your JUnit project, the JUnit tests can be run on the command line using the mvn clean test
command. To get started, download the latest release of Apache Maven from the download section of the Apache Maven Project site.
Add the location where Maven is downloaded to the Classpath using the set PATH command in Windows.
To get started with JUnit and Maven, we add the required version of JUnit to our project. In this case, the JUnit with version 4.13 is used for testing.
xxxxxxxxxx
[...]
junit
junit
4.13
test
[...]
Instead of creating the project in Eclipse (or IntelliJ IDEA), we create a similar project structure that is required for building a Maven Project. The Junit test file (i.e. CrossBrowserTest.java) will now be a part of the org.selenium4
package. Hence, this minimal change is done to the existing test code:
FileName – CrossBrowserTest.java
xxxxxxxxxx
package org.selenium4;
import org.openqa.selenium.By;
import org.openqa.selenium.JavascriptExecutor;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.remote.DesiredCapabilities;
import org.openqa.selenium.remote.RemoteWebDriver;
/* JUnit related imports */
import org.junit.*;
public class CrossBrowserTest {
/* protected static ChromeDriver driver; */
static WebDriver driver = null;
...................................................
...................................................
}
The JUnit test file is placed in \src\test\java\org\selenium4.
pom.xml is placed in the parent folder.
Here are the contents of the pom.xml, which contains information about the project and the configuration required for building the same.
FileName – pom.xml
xxxxxxxxxx
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.example</groupId>
<artifactId>org.selenium4.CrossBrowserTest</artifactId>
<version>1.0-SNAPSHOT</version>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>org.seleniumhq.selenium</groupId>
<artifactId>selenium-java</artifactId>
<version>4.0.0-alpha-6</version>
</dependency>
<dependency>
<groupId>org.seleniumhq.selenium</groupId>
<artifactId>selenium-chrome-driver</artifactId>
<version>4.0.0-alpha-6</version>
</dependency>
<dependency>
<groupId>io.github.bonigarcia</groupId>
<artifactId>webdrivermanager</artifactId>
<version>4.1.0</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-nop -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-nop</artifactId>
<version>1.7.28</version>
<scope>test</scope>
</dependency>
<!-- https://mvnrepository.com/artifact/junit/junit -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.13</version>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<!-- <defaultGoal>install</defaultGoal>-->
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.5.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<version>3.0.0-M5</version>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-report-plugin</artifactId>
<version>3.0.0-M5</version>
</plugin>
</plugins>
</build>
</project>
For a quick recap of Maven and pom.xml, you can refer to getting started with Maven for Selenium testing.
Execution Of All JUnit Tests (with Apache Maven) From The Command Line
To run all the test cases, trigger the following command on the terminal:
mvn clean test
As seen in the execution snapshot, the packages specified in pom.xml are first downloaded on the local machine. Post downloading the packages, it executes the test org.selenium4.CrossBrowserTest
on LambdaTest.
Execution Of A Particular JUnit Test (with Apache Maven) From The Command Line
In our JUnit test code, we only have one test case (i.e., CrossBrowserTest). However, an actual project might contain multiple test cases, and you may want to execute selected tests from the entire lot.
The following command is used to run a particular JUnit test on the command line:
xxxxxxxxxx
mvn clean test -Dtest=package.TestClassName#particularMethod
In our case, the details are as below:
- Package: org.selenium4
- TestClassName: CrossBrowserTest
- ParticularMethod: test_Selenium4_ToDoApp
Trigger the following command on the terminal to run the above JUnit test on the command line:
xxxxxxxxxx
mvn clean test -Dtest=org.selenium4.CrossBrowserTest#test_Selenium4_ToDoApp
In case you want to forgo the generation of report files in the target\surefire-reports folder and see the stack trace, set surefire.useFile
to False.
xxxxxxxxxx
mvn clean test -Dtest=package.TestClassName surefire.useFile=false
How To Run JUnit Tests From The Command Line With Gradle
If you are using Gradle for your JUnit project, you need to configure the required dependencies before running the JUnit test from the command line. Set up Gradle on Windows by downloading the installer from the official download link. Post-installation, add the location of gradle\bin to the Path (or ClassPath).
Run the gradle -v
command on the terminal to verify whether Gradle was successfully installed or not.

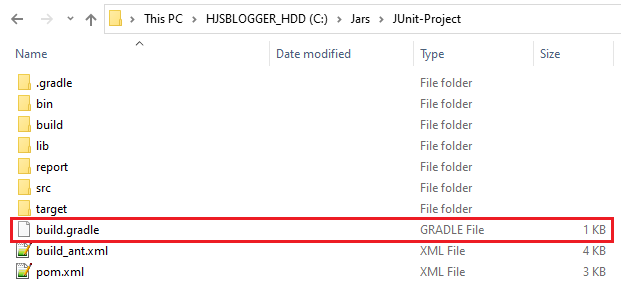

The file build.gradle
is placed in the root folder of the project.
We configure the dependencies and publications in the Gradle build script (i.e., build.gradle
) that define the project’s process. For building the CrossBrowserTest project, the dependencies are – Junit, Hamcrest, Selenium Chrome Driver, and Selenium Java jar. Some of these dependencies are applicable only for the ‘compile’ configuration, whereas others are applicable for the ‘testCompile’ configuration.
The dependencies under the ‘compile’ configuration (i.e., selenium-java, selenium-chrome-driver) are required for compiling the source files. The dependencies under the ‘testCompile’ configuration (i.e., Hamcrest v2.2, JUnit 4.13) are required for compiling the test files (i.e., CrossBrowserTest.java
).
The dependencies under the ‘testRuntime’ configuration are required for running the tests. In our case, this configuration is not required since it includes testCompile
dependencies by default.
FileName – build.gradle
xxxxxxxxxx
plugins {
id 'java'
}
group 'org.selenium4'
version '1.0-SNAPSHOT'
repositories {
mavenCentral()
}
dependencies {
compile group: 'org.seleniumhq.selenium', name: 'selenium-java',
version: '4.0.0-alpha-6'
compile group: 'org.seleniumhq.selenium', name: 'selenium-chrome-driver',
version: '4.0.0-alpha-6'
testCompile group: 'org.hamcrest', name: 'hamcrest', version: '2.2'
testCompile group: 'junit', name: 'junit', version: '4.13'
testRuntime group: 'org.hamcrest', name: 'hamcrest', version: '2.2'
testRuntime group: 'junit', name: 'junit', version: '4.13'
}
Execution of all Gradle JUnit Tests From The Command Line
To run all the JUnit test cases with Gradle, trigger the following command on the terminal:
gradle test
As seen in the execution snapshot, the script downloads the dependencies mentioned in build.gradle
and executes the test CrossBrowserTest (which is a part of the org.selenium4 package
).
As seen below, the JUnit test was executed successfully.
Execution Of All Gradle JUnit Tests Of A Particular Class From The Command Line
In case you want to execute JUnit from the command line of a particular class, run the following command on the terminal:
gradle test --tests ClassName
We have only one class in our project (i.e., CrossBrowserTest). Run the below command to run JUnit tests in that particular class:
gradle test --tests CrossBrowserTest
Execution of a specified Gradle JUnit test of a particular Class From The Command Line
Run the following command to execute a specified JUnit test in a particular class:
xxxxxxxxxx
gradle test --tests ClassName.specifiedMethod
The command mentioned below is used to execute test_Selenium4_ToDoApp
of class CrossBrowserTest:
xxxxxxxxxx
gradle test --tests CrossBrowserTest.test_Selenium4_ToDoApp
Here is the execution snapshot, which indicates the JUnit executed successfully:
Execution of Gradle JUnit Tests Matching A Particular Pattern From The Command Line
There are scenarios where you might want to run JUnit tests that match a name pattern. The sample command mentioned below runs the tests in the class ClassName
with the method name matching *MethodName*
gradle test --tests ClassName.*MethodName*
Trigger the below command on the terminal to execute tests in the class CrossBrowserTest
with methods that match *test_Selenium4_ToDoApp*
xxxxxxxxxx
gradle test --tests CrossBrowserTest.*test_Selenium4_ToDoApp *
Here is the execution snapshot, which indicates the JUnit executed successfully:
How To Run JUnit Tests From The Command Line With ANT
Apache ANT is a popular Java-based build tool. It is used for automation of build processes such as compile, run, test, and assembling of Java applications. Also, it is used for the automation of Java Selenium projects.
To get started with ANT, download the Apache ANT binary from the ANT download link. Add the location of the apache-ant\bin folder to the Path environment variable. Set the environment variable ANT_HOME
to the location that contains Apache ANT. In our case, Apache ANT was installed in C:\Setup-Folder\ANT\apache-ant-1.10.9. Hence ANT_HOME
is set to that folder.

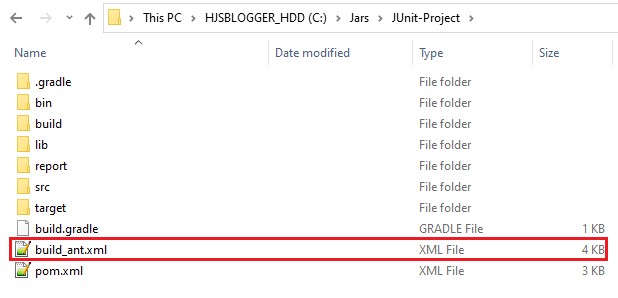

ANT’s build files are written in XML, and the -f
option can be used for specifying the name of the custom build file. The ANT build file is placed in the project root folder. We use the build file named build_ant.xml
for building the project and running the JUnit tests in the test file.

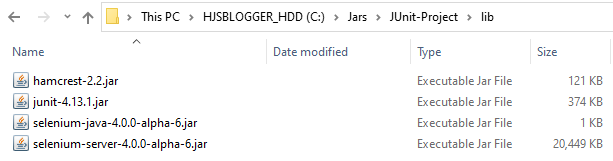

The project dependencies are placed in the project\lib folder. We manually create a lib folder and place the required Jar files in it. The Setting Up section will guide you in downloading the Jar files needed for the JUnit project.
xxxxxxxxxx
<project name="Ant-Test" default="main" basedir=".">
<property name="src.dir" location="src" />
<property name="build.dir" location="bin" />
<!-- Variables used for JUnit testing -->
<property name="test.dir" location="src" />
<property name="lib.dir" location="lib" />
<property name="test.report.dir" location="report" />
<property name="build-test-classes" value="${build.dir}/org/selenium4"/>
<path id="junit.class.path">
<!--
<fileset dir="${lib.dir}">
<include name="**/*.jar" />
</fileset>
-->
<pathelement location="lib/junit-4.13.1.jar" />
<pathelement location="lib/selenium-server-4.0.0-alpha-6.jar" />
<pathelement location="lib/hamcrest-2.2.jar" />
<pathelement path="${build.dir}"/>
</path>
<target name="clean">
<echo message="---------- Step 1: Clean the binary folder and create it again----------" />
<delete dir="${build.dir}" />
<delete dir="${test.report.dir}" />
</target>
<!-- Creates the build, docs and dist directory-->
<target name="makedir">
<echo message="---------- Step 2: MakeDir the binary folder and create it again----------" />
<mkdir dir="${build.dir}" />
<mkdir dir="${test.report.dir}" />
</target>
<!-- Compiles the java code (including the usage of library for JUnit -->
<target name="compile" depends="clean, makedir">
<echo message="---------- Step 3: Compile the binary folder and create it again----------" />
<javac srcdir="${src.dir}" destdir="${build.dir}">
<classpath refid="junit.class.path" />
</javac>
</target>
<!-- Run the JUnit Tests -->
<target name="junit" depends="compile">
<echo message="---------- Step 4: Clean the binary folder and create it again----------" />
<junit printsummary="on" fork="true" haltonfailure="no">
<classpath refid="junit.class.path" />
<formatter type="xml" />
<batchtest todir="${test.report.dir}">
<fileset dir="${src.dir}">
<patternset id="sources">
<include name="**/test/java/org/selenium4/*.java" />
</patternset>
</fileset>
</batchtest>
</junit>
<junit printsummary="on" fork="true" haltonfailure="no">
<classpath refid="junit.class.path" />
<formatter type="xml" />
<batchtest todir="${test.report.dir}">
<fileset dir="${build.dir}">
<patternset id="tests">
<include name="**/org/selenium4/*.class" />
</patternset>
</fileset>
</batchtest>
</junit>
</target>
<target name="main" depends="compile, junit">
<echo message="---------- Step 5: Clean the binary folder and create it again----------" />
<description>Main target</description>
</target>
</project>
As seen above, the build file (build_ant.xml) contains five distinct steps (clean, makedir, compile, junit, and main). The depends attribute indicates the dependency of one target on the other. In the above build file, the target ‘compile’ depends on the execution status of the targets ‘clean’ and ‘makedir.’
The ‘property’ attribute is used to set variables, which can later be used in the build file. It consists of a name and value pair. The value of the property is accessible via ${}.
For example, property named lib.dir
points to the location lib.
xxxxxxxxxx
<property name="src.dir" location="src" />
<property name="build.dir" location="bin" />
<property name="test.dir" location="src" />
<property name="lib.dir" location="lib" />
The pathelement
attribute is used for defining the classpath. The location points to the directory that contains the jar files essential for compilation and execution. Since we have stored the jar files in project-folder\lib folder, the location in pathelemen
t should point to lib\< required-jar >.jar
xxxxxxxxxx
<path id="junit.class.path">
<pathelement location="lib/junit-4.13.1.jar" />
<pathelement location="lib/selenium-server-4.0.0-alpha-6.jar" />
<pathelement location="lib/hamcrest-2.2.jar" />
<pathelement path="${build.dir}"/>
</path>
The junit
element in the build file is used for implementing the Apache ANT JUnit task. The task for running tests from the JUnit framework is carried out in this step.
xxxxxxxxxx
<junit printsummary="on" fork="true" haltonfailure="no">
The classpath is referenced by specifying the refid
attribute on the element (i.e. in our case it is junit.class.path
).
xxxxxxxxxx
<classpath refid="junit.class.path" />
<formatter type="xml" />
The patternset element groups different patterns into sets which can be later referenced by the id attribute. Since the test file (CrossBrowserTest.java
) is stored in src/test/java/org/selenium4 folder, the same is included for the build.
xxxxxxxxxx
<junit printsummary="on" fork="true" haltonfailure="no">
<classpath refid="junit.class.path" />
<formatter type="xml" />
<batchtest todir="${test.report.dir}">
<fileset dir="${src.dir}">
<patternset id="sources">
<include name="**/test/java/org/selenium4/*.java" />
</patternset>
</fileset>
</batchtest>
</junit>
[...]
</target>
Property named build-test-classes
was set to ${build.dir}/org/selenium4 at the beginning of the build file where build.dir=bin
.
xxxxxxxxxx
<property name="build.dir" location="bin" />
[...]
<property name="build-test-classes" value="${build.dir}/org/selenium4"/>
On successful compilation, the class file is generated in the bin/org/selenium4 folder.
Execution of ANT JUnit tests from the command line
Now that the build file is ready, we will run the JUnit test from the command line. Trigger the following command on the terminal to execute the steps in the build file (i.e., build_ant.xml
).
ant –f <build_file>
The build command in our case is:
ant –f build_ant.xml
As seen below, the test was executed on the cloud-based Selenium Grid.
Here is the terminal snapshot, which indicates that all the ‘targets’ mentioned in the build file were completed successfully.
Shown below is the status of the test executed on the LambdaTest Grid:
Wrapping Up
When using JUnit tests for your project, you may come across scenarios where you might want to run JUnit tests from the command line. This option comes in handy when you want to quickly check the JUnit units’ status, thereby avoiding the need to open IDE. In this JUnit tutorial, we looked at running the JUnit test from the command line when JUnit is used with Maven, Gradle, and ANT.
If you found this blog useful, we would be grateful if you’d share it with someone else or many others. Happy Testing ☺
Published at DZone with permission of Himanshu Sheth. See the original article here.
Opinions expressed by DZone contributors are their own.
Comments
