How to Decide Between JOIN and JOIN FETCH
Deciding between JOIN and JOIN FETCH is a matter of performance!
Join the DZone community and get the full member experience.
Join For FreeTypically, JOIN
and JOIN FETCH
come into play when the application has lazy associations but some data must be fetched eagerly. Relying on FetchType.EAGER
at the entities-level is a code smell.
Consider the Author
and Book
entities that are involved in a bidirectional-lazy @OneToMany
association:
public class Author implements Serializable {
private static final long serialVersionUID = 1L;
private Long id;
private String name;
private String genre;
private int age;
cascade = CascadeType.ALL, mappedBy = "author", orphanRemoval = true) (
private List<Book> books = new ArrayList<>();
...
}
xxxxxxxxxx
public class Book implements Serializable {
private static final long serialVersionUID = 1L;
private Long id;
private String title;
private String isbn;
fetch = FetchType.LAZY) (
name = "author_id") (
private Author author;
...
}

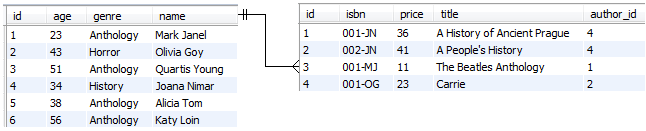

Consider the following sample of data:
And, the goal is to fetch the following data as entities:
- all
Author
and theirBook
that are more expensive than the given price - all the
Book
and theirAuthor
Fetch All Authors and Their Books that Are More Expensive than The Given Price
To satisfy the first query (fetch all the Author
and their Book
that are more expensive than the given price) write a Spring repository, AuthorRepository
, and add a JOIN
and a JOIN FETCH
query meant to fetch the same data:
xxxxxxxxxx
readOnly = true) (
public interface AuthorRepository extends JpaRepository<Author, Long> {
// INNER JOIN
value = "SELECT a FROM Author a INNER JOIN a.books b WHERE b.price > ?1") (
List<Author> fetchAuthorsBooksByPriceInnerJoin(int price);
// JOIN FETCH
value = "SELECT a FROM Author a JOIN FETCH a.books b WHERE b.price > ?1") (
List<Author> fetchAuthorsBooksByPriceJoinFetch(int price);
}
Calling the above repository-methods and displaying the fetched data to the console can be done as follows:
xxxxxxxxxx
public void fetchAuthorsBooksByPriceJoinFetch() {
List<Author> authors = authorRepository.fetchAuthorsBooksByPriceJoinFetch(40);
authors.forEach((e) -> System.out.println("Author name: "
+ e.getName() + ", books: " + e.getBooks()));
}
readOnly = true) (
public void fetchAuthorsBooksByPriceInnerJoin() {
List<Author> authors = authorRepository.fetchAuthorsBooksByPriceInnerJoin(40);
authors.forEach((e) -> System.out.println("Author name: "
+ e.getName() + ", books: " + e.getBooks()));
}
How JOIN FETCH Will Act
JOIN FETCH
is specific to JPA and it allows associations to be initialized along with their parent objects using a single SELECT
. As you will see soon, this is particularly useful for fetching associated collections. This means that calling fetchAuthorsBooksByPriceJoinFetch()
will trigger a single SELECT
as follows:
xxxxxxxxxx
SELECT
author0_.id AS id1_0_0_,
books1_.id AS id1_1_1_,
author0_.age AS age2_0_0_,
author0_.genre AS genre3_0_0_,
author0_.name AS name4_0_0_,
books1_.author_id AS author_i5_1_1_,
books1_.isbn AS isbn2_1_1_,
books1_.price AS price3_1_1_,
books1_.title AS title4_1_1_,
books1_.author_id AS author_i5_1_0__,
books1_.id AS id1_1_0__
FROM author author0_
INNER JOIN book books1_
ON author0_.id = books1_.author_id
WHERE books1_.price > ?
Running this SQL against the data sample for a given price of 40 dollars will fetch the following data (display the author's names and books):
xxxxxxxxxx
Author name: Joana Nimar,
books: [Book{id=2, title=A People's History, isbn=002-JN, price=41}]
This looks correct! There is a single book in the database expensive than 40 dollars and its author is Joana Nimar.
How JOIN Will Act
On the other hand, JOIN
doesn't allow associated collections to be initialized along with their parent objects using a single SELECT
. This means that calling fetchAuthorsBooksByPriceInnerJoin()
will result in the following SELECT
(the SQL reveals that no book was loaded):
xxxxxxxxxx
SELECT
author0_.id AS id1_0_,
author0_.age AS age2_0_,
author0_.genre AS genre3_0_,
author0_.name AS name4_0_
FROM author author0_
INNER JOIN book books1_
ON author0_.id = books1_.author_id
WHERE books1_.price > ?
Running this SQL against the data sample will fetch a single author (Joana Nimar) which is correct. Attempting to display the books written by Joana Nimar via getBooks()
will trigger an additional SELECT
as follows:
xxxxxxxxxx
SELECT
books0_.author_id AS author_i5_1_0_,
books0_.id AS id1_1_0_,
books0_.id AS id1_1_1_,
books0_.author_id AS author_i5_1_1_,
books0_.isbn AS isbn2_1_1_,
books0_.price AS price3_1_1_,
books0_.title AS title4_1_1_
FROM book books0_
WHERE books0_.author_id = ?
Writing a query as below doesn't help either:
xxxxxxxxxx
value = "SELECT a, b FROM Author a INNER JOIN a.books b WHERE b.price > ?1") (
Display the author name and the fetched books:
xxxxxxxxxx
Author name: Joana Nimar,
books: [
Book{id=1, title=A History of Ancient Prague, isbn=001-JN, price=36},
Book{id=2, title=A People's History, isbn=002-JN, price=41}
]
Two things must be highlighted here: an important drawback and potential confusion.
First, the drawback. Notice that JOIN
has fetched the books in an additional SELECT
. This can be considered a performance penalty in comparison with JOIN FETCH
which needs a single SELECT
, therefore a single database roundtrip.
Second, the potential confusion. Pay extra attention to the interpretation of the WHERE books1_.price > ?
clause in the first SELECT
. While the application fetches only the authors that have written books more expensive than 40 dollars, when calling getBooks()
, the application fetches all books of these authors not only the books more expensive than 40 dollars. This is normal since, when getBooks()
is called, the WHERE
clause is not there anymore. Therefore, in this case, JOIN
produced a different result than JOIN FETCH
.
Fetch All Book and Their Author
To satisfy the second query (all the Book
and their Author
) write a Spring repository, BookRepository
, and add two JOIN
s and a JOIN FETCH
query:
xxxxxxxxxx
readOnly = true) (
public interface BookRepository extends JpaRepository<Book, Long> {
// INNER JOIN BAD
value = "SELECT b FROM Book b INNER JOIN b.author a") (
List<Book> fetchBooksAuthorsInnerJoinBad();
// INNER JOIN GOOD
value = "SELECT b, a FROM Book b INNER JOIN b.author a") (
List<Book> fetchBooksAuthorsInnerJoinGood();
// JOIN FETCH
value = "SELECT b FROM Book b JOIN FETCH b.author a") (
List<Book> fetchBooksAuthorsJoinFetch();
}
Calling the above methods and displaying the fetched data to the console can be done as follows:
xxxxxxxxxx
public void fetchBooksAuthorsJoinFetch() {
List<Book> books = bookRepository.fetchBooksAuthorsJoinFetch();
books.forEach((e) -> System.out.println("Book title: " + e.getTitle()
+ ", Isbn:" + e.getIsbn() + ", author: " + e.getAuthor()));
}
readOnly = true) (
public void fetchBooksAuthorsInnerJoinBad/Good() {
List<Book> books = bookRepository.fetchBooksAuthorsInnerJoinBad/Good();
books.forEach((e) -> System.out.println("Book title: " + e.getTitle()
+ ", Isbn: " + e.getIsbn() + ", author: " + e.getAuthor()));
}
How JOIN FETCH Will Act
Calling fetchBooksAuthorsJoinFetch()
will trigger a single SQL triggered as follows (all authors and books are fetched in a single SELECT
):
xxxxxxxxxx
SELECT
book0_.id AS id1_1_0_,
author1_.id AS id1_0_1_,
book0_.author_id AS author_i5_1_0_,
book0_.isbn AS isbn2_1_0_,
book0_.price AS price3_1_0_,
book0_.title AS title4_1_0_,
author1_.age AS age2_0_1_,
author1_.genre AS genre3_0_1_,
author1_.name AS name4_0_1_
FROM book book0_
INNER JOIN author author1_
ON book0_.author_id = author1_.id
Running this SQL against the data sample will output (display only the book title, ISBN, and author):
xxxxxxxxxx
Book title: A History of Ancient Prague, Isbn:001-JN,
author: Author{id=4, name=Joana Nimar, genre=History, age=34}
Book title: A People's History, Isbn:002-JN,
author: Author{id=4, name=Joana Nimar, genre=History, age=34}
Book title: The Beatles Anthology, Isbn:001-MJ,
author: Author{id=1, name=Mark Janel, genre=Anthology, age=23}
Book title: Carrie, Isbn:001-OG,
author: Author{id=2, name=Olivia Goy, genre=Horror, age=43}
Everything looks as expected! There are four books and each of them has an author.
How JOIN Will Act
On the other hand, calling fetchBooksAuthorsInnerJoinBad()
will trigger a single SQL as follows (the SQL reveals that no author was loaded):
xxxxxxxxxx
SELECT
book0_.id AS id1_1_,
book0_.author_id AS author_i5_1_,
book0_.isbn AS isbn2_1_,
book0_.price AS price3_1_,
book0_.title AS title4_1_
FROM book book0_
INNER JOIN author author1_
ON book0_.author_id = author1_.id
The returned List<Book>
contains four Book
. Looping this list and fetching the author of each book via getAuthor()
will trigger three additional SELECT
statements (there are three SELECT
statements instead of four because two of the books have the same author, therefore, for the second of these two books, the author will be fetched from the Persistence Context). So, the below SELECT
is triggered three times with different id
value:
xxxxxxxxxx
SELECT
author0_.id AS id1_0_0_,
author0_.age AS age2_0_0_,
author0_.genre AS genre3_0_0_,
author0_.name AS name4_0_0_
FROM author author0_
WHERE author0_.id = ?
Displaying the title, ISBN, and author of each book will output:
xxxxxxxxxx
Book title: A History of Ancient Prague, Isbn: 001-JN,
author: Author{id=4, name=Joana Nimar, genre=History, age=34}
Book title: A People's History, Isbn: 002-JN,
author: Author{id=4, name=Joana Nimar, genre=History, age=34}
Book title: The Beatles Anthology, Isbn: 001-MJ,
author: Author{id=1, name=Mark Janel, genre=Anthology, age=23}
Book title: Carrie, Isbn: 001-OG,
author: Author{id=2, name=Olivia Goy, genre=Horror, age=43}
In this case, the performance penalty is obvious. While JOIN FETCH
needs a single SELECT
, JOIN
needs four SELECT
statements.
How about calling fetchBooksAuthorsInnerJoinGood()
? Well, this will produce the exact same query and result as JOIN FETCH
. This is working because the fetched association is not a collection. So, in this case, you can use JOIN
or JOIN FETCH
.
As a rule of thumb, use
JOIN FETCH
(notJOIN
) whenever the data should be fetched as entities (because the application plans to modify them) and Hibernate should include the associations in theSELECT
clause. This is particularly useful for fetching associated collections. In such scenarios, usingJOIN
is prone to N+1 performance penalties. On the other hand, whenever fetching read-only data (don't plan to modify it), better rely onJOIN
+ DTO instead ofJOIN FETCH
.
Pay attention that while a query as SELECT a FROM Author a JOIN FETCH a.books
is correct, the following attempts will not work:
SELECT a.age as age FROM Author a JOIN FETCH a.books
Causes: org.hibernate.QueryException: query specified join fetching, but the owner of the fetched association was not present in the select list
SELECT a FROM Author a JOIN FETCH a.books.title
Causes: org.hibernate.QueryException: illegal attempt to dereference collection [author0_.id.books] with element property reference [title]
The source code is available on GitHub.
If you liked this article, then you'll my book containing 150+ performance items - Spring Boot Persistence Best Practices.
This book helps every Spring Boot developer to squeeze the performances of the persistence layer.
