Complete Guide To Access Forms In Selenium With Java

Have you noticed the ubiquity of web forms while surfing the internet? Almost every website or web-application you visit leverages web-forms to gain relevant information about yourself. From creating an account over a web-application to filling a brief survey, web forms are everywhere! A form comprises web elements such as checkbox, radio button, password, drop down to collect user data.

If you are going to perform automated browser testing for your website or web-application then you simply can’t afford to drop-out the forms from your test automation scripts. Speaking of test automation, Selenium has an API that helps to find these web elements and take subsequent actions on them like selecting a value or entering some text.

You may also like: How To Test a Login Process With Selenium and Java

This article will help you understand how you can access forms in Selenium to automate browser testing of your web application. I will be using the JUnit Framework with some annotations to execute our Selenium automation testing later in this article.

To begin our learning with, we’ll first understand what a WebElement is, how can it be accessed in Selenium Automation, and then go about seeing the basic form elements like the input boxes, buttons, the actions that can be performed on these forms and finally writing a script to handle a form and run it on various browsers. If you are already aware of the basics then feel free to skip through the sections according to yourself:

What Is A WebElement?

In layman’s language, anything present on a webpage constitutes a WebElement. Examples can be a text box, a radio button, etc. Selenium Webdriver offers an interface called the WebElement which is responsible for all the possible interaction that takes place in the web page. To find these WebElements, Selenium WebDriver provides 2 methods viz, findElement() and findElements().

findElement(): This method is used to locate a single web element. Once the element is found it is returned as a WebElement object. Let us now see the syntax of findElement(), but before we start using the WebElement object in our test script we need to make note of one very important point.

We need to import below package before we can start creating objects of the WebElements:

import org.openqa.selenium.WebElement;

Syntax for findElement():

WebElement ele = driver.findElement(By.xpath(---xpath---);

findElements(): It returns a list of WebElements that corresponds to the locator defined in the method. The syntax for findElements() is as shown below:

List<WebElement> ele = driver.findElements(By.xpath(---xpath---);

Now that we are thorough with the understanding of the WebElement interface, along with the difference between findElement() and findElements() method in Selenium automation testing.
It is time to deep dive into these web elements. We will now list down all the web fields that may be involved in your website or web application form. We will then notice how to access forms in Selenium WebDriver.

Types Of Fields To Access In Forms With Selenium

To subsequently build the scripts to access forms in Selenium WebDriver, we need to understand the various fields that we will have to handle in our test automation scripts. Let us try to dig a little more about these WebElements one by one.

Input Box

The input box is a primary element in any form. No form is complete without user input. It can be of two types:

1. Text Field Box – Text boxes that display the value as is entered by the user.
2. Password Field Box – Text boxes that display special characters (mostly ‘*’) when the value is entered by the user.

Here is an image representing the input boxes inside a form.

Buttons

One of the most important fields to consider while you access forms for Selenium automation testing. There is no point in filling up a form if there is no interface to submit the same. Buttons are simply used to submit whatever information we have filled in our text boxes. This can be submitting some form of data or simply submitting the sign-in information to the server.

CheckBox

In most of the websites that are widely used we see a small box that enables us to check or uncheck it. Mostly in agreement sections wherein the user needs to confirm the understanding of these policies. CheckBox is used to return a boolean value, if it is checked then it would return True else would return false.

Radio Button

Remember seeing a circular element on the screens when we select our Gender in any of the signup forms? That is what a radio button is. It is similar to a checkbox only difference being if we are given multiple radio buttons we can select just one, while in the case of multiple checkboxes, we can opt multiple of them.

Link

We all face the common problem of forgetting our account passwords. Noticed the Forgot Password link on the screens? That is what a link is. It redirects us to a new web page or a new window pop-up or a similar thing. It links us to a new URL altogether.

Drop Down

There are times for a website where there are multiple options for a specific category. Say a website to book your flight tickets. To pick up the Origin & Destination city we often see a list with multiple values. This list which has an arrow at the rightmost end to expand and show the values is called a drop-down. It provides a list of options to the user thereby giving access to one or multiple values as per the requirement.

Below is a snapshot of how Facebook uses forms.

How To Web Elements In A Form With Selenium?

Now that we know what different types of web elements we can come across in our application, We need to identify these web elements through our Selenium automation testing scripts, and to do so we use Selenium locators. Locators are the parameters given to the findElement() or findElements() methods which help to retrieve the web element by using its properties like the ID, Name, Class, etc. In general, we have eight locators in Selenium that are widely used:

• ID
• Name
• Tag Name
• Class Name
• LinkText
• Partial LinkText
• XPath
• CSS Selector

Few of the examples are:

x

WebElement eid = driver.findElement(By.id(“email”);

WebElement pswd = driver.findElement(By.name(“password”);

WebElement sbmtBtn = driver.findElement(By.xpath(“//input[@value=”submit”]”);

In a similar way we can use By.className, By.CSSSelector(), By.linktext(), etc.

Interacting With Web Elements By Accessing Forms In Selenium

Finding these web elements is only half-way of your journey while accessing forms through Selenium automation testing. Now, comes the crux of accessing form in Selenium. Performing actions and interacting with the forms using Selenium.! Let us see how different actions can be performed on each one of them.

1. Input Box

To handle any input box, we must be able to enter information, clear information or get information from the box. Different methods that Selenium offers to work with text boxes are:

• sendKeys()
• clear()
• getText()

To enter text into a textbox we can use the sendKeys method which would input the user required text from our automation script.

driver.findElement(By.id(“username”).sendKeys(“abc@gmail.com”);

The above statement would enter the Email ID as abc@gmail.com into a text box whose ID is username. Now, to clear a pre-entered text or the text that you last entered can be wiped clean with the clear() method.

driver.findElement(By.id(“username”)).clear();

The third method that can be used on a text box is the getText() method. It’ll fetch the text that is written in a text box in case we need to validate some existing or entered text.

String nameText = driver.findElement(By.id(“username”)).getText();

The above line of code would return the text, let us take the text entered by the first line of code above, i.e. abc@gmail.com and store it in nameText variable of string type. There might be chances when the text is present in the value property. In such a scenario we will use the getAttribute() method in place of getText().

String nameText = driver.findElement(By.id(“username”)).getAttribute(“value”);

2. Buttons

We can submit the information by using buttons. This can be done though click actions on the same. Below are the methods available in selenium to perform actions on buttons.

• click()
• submit()

It might look like there is no difference in both the methods, but a very minute detail changes the usage of each method. Both of these methods would eventually submit the form data to the server, but we need to understand the type of the web element present. If the element type is either ‘submit’ or ‘button’, click() method would work for both, but if the element type is ‘submit’ with the button being inside

tag, then only submit() would work. If any of the conditions is false then submit() won’t work.

Below is the syntax for both:

driver.findElement(By.id(“submtLogIn”).click();

driver.findElement(By.id(“submtLogIn”).submit()

3. Check Box

While working with checkbox, we’ll use below Selenium methods:

• click()
• isSelected()

To select or check a value we use the click() method. It simply changes the state from unchecked to checked and vice-versa.

driver.findElement(By.id(“name”)).click();

Now that we can check/uncheck a checkbox, we might first need to know the state of a checkbox before performing a certain action with Selenium automation testing. To get the state we use isSelected() method which would return a boolean value. This means if the checkbox is checked we’d get a True else we’ll get False.

boolean state = driver.findElement(By.id(“name”)).isSelected();

4. Radio Button

The actions performed on the radio button are similar to those on a checkbox and we can use the same methods as above for the radio button as well.

• click()
• isSelected()

5. Link

Links are generally embedded in a web page for us to navigate to a new screen or a pop-up or a form. We can either do a click action on them or can get the text that it holds and then proceed with our execution.

• click()
• getText()

Both of the above methods can be used in a way similar as stated above.

6. Dropdown

Dropdowns are very common in web applications and are widely used for selecting among a range of options. There is a wide variety of methods that we can use with dropdowns. Let us see them and their corresponding syntax and usage one by one.

• selectByVisibleText(String) — It selects the option by comparing the visible text wherein String value passed in the method is what is compared.
• selectByIndex(int) — Selects option based on the index in the drop-down menu with integer parameter passed as the index.
• selectByValue(String) — Selects the option based on the option value in string format

In a similar way we can deselect any selected value from the dropdown using any of the below options:

• deselectByVisibleText(String)
• deselectByIndex(int)
• deselectByValue(String)
• deSelectAll() — This would deselect all the options selected from a dropdown.

To use any of the above methods in your selenium code, syntax can be as follows:

xxxxxxxxxx

Select se=new Select(driver.findElement(By.id("nation")));

se.selectByValue("Ind");

There are times while performing Selenium automation testing of our web app, where we need to validate the options coming in our dropdown list, or if we can select multiple options. These are very easily sorted using selenium which gives us the leverage to perform a few more actions. Listed below are a few of them:

• getAllSelectedOptions() — We may come across dropdowns wherein we can select multiple options. Now, to get the list of all the selected options we can use this method.
• getFirstSelectedOption() — This method would return the first option that has been selected from the dropdown and unlike the above method it would return a single web element and not a list.
• getOptions() — This method would enable us to get a list of all available options in a dropdown.
• isMultiple() — To check if a dropdown can take multiple options, we can use isMultiple() method which would return a boolean value.

To get a list of options we can write our piece of code by referencing a list object:

xxxxxxxxxx

Select se=new Select(driver.findElement(By.id("nation"))); List<WebElement>

list=se.getOptions();

Now that we know the basic operations and handling of Web Elements let us go forward implementing these in a Selenium script. In the next section, I’ll show you a simple program that handles the Form Elements on a demo site.

Handling Form Elements Through Selenium WebDriver

Now, we will automate the Facebook Sign Up functionality to access the form in Selenium, as we perform actions on the web elements. Here is a test script to access forms in Selenium with Java using the JUnit framework.

xxxxxxxxxx

//Complete code to run the test of facebook sign up

import org.junit.AfterClass;

import org.junit.BeforeClass;

import org.junit.Test;

import org.openqa.selenium.By;

import org.openqa.selenium.WebDriver;

import org.openqa.selenium.WebElement;

import org.openqa.selenium.chrome.ChromeDriver;

import org.openqa.selenium.support.ui.Select;

public class TestForms {

    static WebDriver driver;

    @BeforeClass

    public static void setUp(){

            System.out.println("-----This is the beginning of our test !!!-----");

        System.setProperty("webdriver.chrome.driver", "C:\\Users\\admin\\Downloads\\chromedriver_win32(1)\\chromedriver.exe");

            driver = new ChromeDriver();

            driver.manage().window().maximize();

            driver.get("https://facebook.com");

    }

    @Test

    public void fillForm(){

            System.out.println("-----Let us start the sign up process!!!-----");

            /*

             * Handling text boxes to enter and clear values

             */

            WebElement fName = driver.findElement(By.xpath("//input[@name='firstname']"));

            fName.sendKeys("--Enter you name here--");

            WebElement lName = driver.findElement(By.xpath("//input[@name='lastname']"));

            lName.sendKeys("--Enter your last name--");

            //Clear the textbox

            lName.clear();

            lName.sendKeys("XYZ");

            WebElement eMail = driver.findElement(By.xpath("//input[@name='reg_email__']"));

            eMail.sendKeys("--Enter mail or contact number--");

            WebElement pwd = driver.findElement(By.xpath("//input[@name='reg_passwd__']"));

            pwd.sendKeys("--Enter a valid password here--");

            /*

             * Handling dropdown to select date of birth

             */

            Select date = new Select(driver.findElement(By.xpath("(id('day'))")));

            date.selectByVisibleText("15");

            Select month = new Select(driver.findElement(By.xpath("(id('month'))")));

            month.selectByVisibleText("Jan");

            Select year = new Select(driver.findElement(By.xpath("(id('year'))")));

            year.selectByVisibleText("1990");

            /*

             * Handling Radio buttons to select gender

             */

        driver.findElement(By.className("_58mt")).click();

            /*

             * Handling the Sign Up button to perform click action

             */

            WebElement sgnUp = driver.findElement(By.xpath("//button[@id='u_0_13']"));

            sgnUp.click();

    }

    @AfterClass

    public static void tearDown(){

            System.out.println("-----We're now closing the session...-----");

            driver.quit();

    }

}

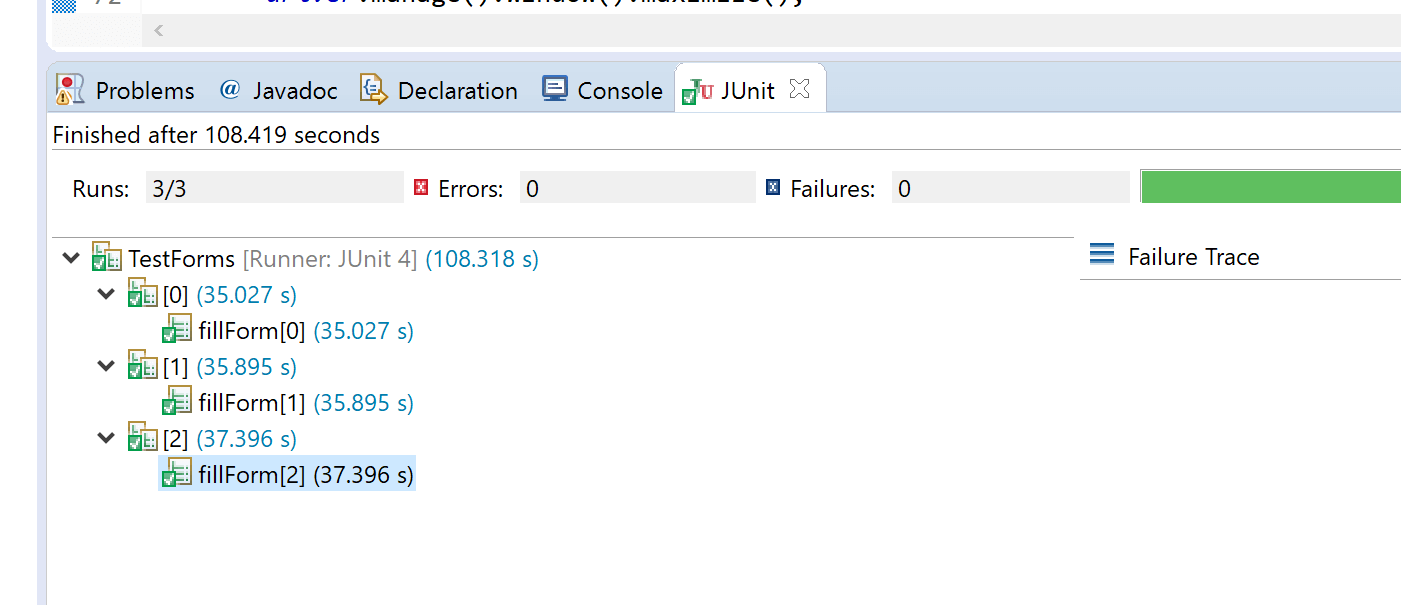

By running the above script, you will be able to access forms in Selenium using the JUnit. If you guys are not familiar with JUnit. Here is an end-to-end guide for running your first Selenium automation testing script with JUnit.

Thoughts About Scalability For A Faster Test Cycle?

Job well done! However, if you are to access forms in Selenium for your web-application then chances are that your test suites are going to be bigger and complex. You will need to access forms in Selenium on hundreds of browsers + operating systems. Wondering why?

Well, your form may not be as cross browser compatible as you may assume them to be! Here is how a simple DateTime input field may differ in rendering.
